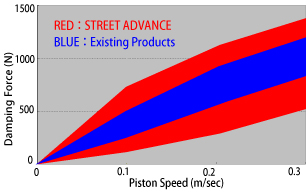

| 1.Damping force Adjustment with "ADVANCE Needle"! |
|
 |
| 2.Improved Durability! |
| Newly-designed oil seal with many improvements and ring nut with dust-discharge groove on side are used. Such new and improved parts improved the durability, preventing the contamination by foreign matters which can lead to the reduction of product life. |
|
 |
| OIL SEALRING NUT |
|
| |
|
|
| Final assembly of shock absorbers is now done in the clean room, which is almost equivalent to operating room, to thoroughly eliminate the cause of oil leak. Room pressure is kept under control to shut out dust & dirt and all workers entering the room must take air shower, to make sure all the assembly work is done in completely clean air. |
|
|
|
|
| 3.High-Quality yet Affordable! |
| Fundamental structure, persistently being improved and matured over the past 15 years, is now reviewed in terms of VA & VE and 40% of its existing components are re-designed. With this, not only the durability against oil leaks and/or aged deterioration is well improved and the operating noise is reduced, but also the overall cost is well reduced. This new product is sure to satisfy wide variety of users; from novice to expert. |
|
 |

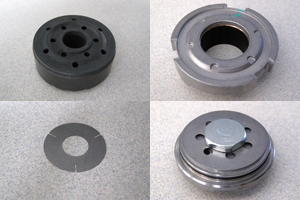

| Some of Improved Parts / Components |
|
|
| |
|
| 4.Patented Tough Anti-Rust Treatment! |
In addition to the patented "2-layer/1-bake" treatment using anti-rust paint, the blast finish to the base surface is used on Street Advance, for tougher protection from chipping, often caused by bounced pebbles, and for strong rust proofing. We are confident that people living in snowfall area or near seashores would even be very satisfied.
|
|
 |
| Painting Process |
|
|
|
|
| Non-welded adjustment threads are adopted for Street Advance. The existing welded structure can create a very fine gap which is difficult to paint and can cause rusting. To solve this, we put a little time and effort; shell case and threads are separately painted and coated then later assembled together. |
|
 |
| Non-Welded Threads |
|
|
|
| 5.Smooth Ride Height Adjustment! |

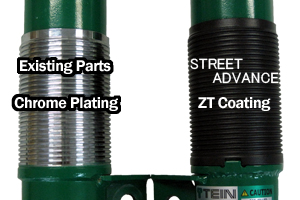

| Adjustment threads on shell case are treated with TEIN original self-developed "ZT coating". This specially formulated fluorine resin coating, with super low frictional properties, is tightly baked onto the surface, for keeping a smooth adjustment for a long period. |
|
 |
| Adjustment Threads |
|
|
|
|
| Street Advance has adopted the new wrought aluminum spring seats and low-friction hard-resin thrust washers. These effectively reduces the friction with springs, caused during ride height adjustment, and makes it easier to adjust the ride height with pre-load on the springs. |
|
 |
| Spring Seat & Low-Friction Thrust Washer |
|
|
| |
|
| 6.Wide Range of Lineups for over 90 Vehicle Models! |
With the main focus on most modified ones, Street Advance is available for wide variety of vehicle models; from K-cars, compact cars, minivans, sedans, sport cars to import cars.
|
|
|
|
| Lineups |
 |
