| 1.High-Quality yet Affordable! |
| Fundamental structure, persistently being improved and matured over the past 15 years, is now reviewed in terms of VA & VE and 40% of its existing components are re-designed. With this, not only the durability against oil leaks and/or aged deterioration is well improved and the operating noise is reduced, but also the overall cost is well reduced. This new product is sure to satisfy wide variety of users; from novice to expert. |
 |
 |

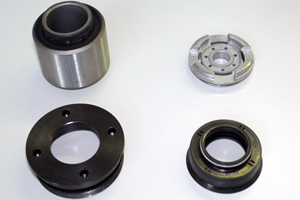

| Some of Improved Parts / Components |
|
|
|
|
MADE IN “YOKOHAMA”
In-house integrated manufacturing system enables thorough review of the production process and holds the overall cost to the minimum. Based on our on-site actual-item principle and making the full use of most-updated ICT for information sharing, R&D staffs and production staffs are always working closely and quickly together for further improvements. TEIN continues to improve products everyday, or even every second, in order to pass all the benefits to our customers. |
|
 |

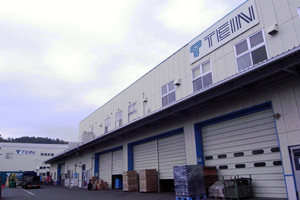

| Headquarter Factory in Yokohama |
|
|
|
| 2.Patented Tough Anti-Rust Treatment! |
| In addition to the patented “2-layer/1-bake" treatment using anti-rust paint, the blast finish to the base surface is used on Street Basis, for tougher protection from chipping, often caused by bounced pebbles, and for strong rust proofing. We are confident that people living in snowfall area or near seashores would even be very satisfied. |
|
 |
| Painting Process |
|
| |
|
|

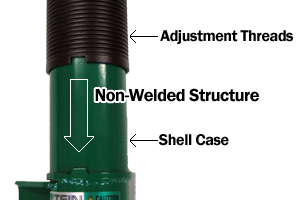

| Non-welded adjustment threads are adopted for Street Basis. The existing welded structure can create a very fine gap which is difficult to paint and can cause rusting. To solve this, we put a little time and effort; shell case and threads are separately painted and coated then later assembled together. |
|
 |
| Non-Welded Threads |
|
|
|
| 3.Smooth Ride Height Adjustment! |

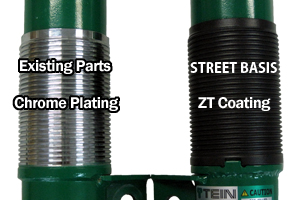

| Adjustment threads on shell case are treated with TEIN original self-developed “ZT coating”. This specially formulated fluorine resin coating, with super low frictional properties, is tightly baked onto the surface, for keeping a smooth adjustment for a long period. |
|
 |
| Adjustment Threads |
|
|
|
|
| Street Basis has adopted the new wrought aluminum spring seats and low-friction hard-resin thrust washers. These effectively reduces the friction with springs, caused during ride height adjustment, and makes it easier to adjust the ride height with pre-load on the springs. |
|
 |
| Spring Seat & Low-Friction Thrust Washer |
|
|
| |
|
| 4.Sturdy yet Delicate New Setting! |
Aiming for the perfect setting for everyday street use, new setting is a well balanced combination of the followings; just a right amount of ride height drop for stylish appearance, flexible roadholding performance to correspond to various surface changes, sturdy maneuverability, stable ride on highways, comforts in rear seats & more. Use of larger tires and wheels are well considered during development.
|
|
|
|
|
| 5.Wide Range of Lineups for over 100 Vehicle Models! |
| With the main focus on most modified ones, Street Basis is available for wide variety of vehicle models. Every lineup is tested on actual vehicle and thoroughly examined to find the best setting. Look out for more & more lineups coming your way in the near future!. |
|
|
| Lineups |
 |
|
