In-Car Damping Force Adjustment!
EDFC
Would you like EDFC?
EDFC (Electronic Damping Force Controller) makes it possible for the driver to adjust the damping force by controlling a motor installed on the shock absorber while being seated in the driver's seat.
The driver can enjoy the variations in suspension settings fully and actively, according to various driving situations.
*This product does not adjust vehicle ride height.
Click here for EDFC compatibility
How to Check for EDFC (Electronic Damping Force Controller) Adaptability
Concepts
Easily Controlled from the Inside!
To control the damping force, the driver usually needs to get off the car, raise the hood and/or take off rear interior parts such as the speaker board or rear seat. With EDFC, all the driver has to do is simply push the buttons on the controller to adjust damping force without even setting a foot outside the vehicle.
Easy-to-Recall Memory Contents!
With just a touch of a button, damping force is adjusted to the preset setting instantly. Up to 3 presets are available to store the preferred settings.
Simple Operation at Your Fingertip!
It is so easy to operate. All the basic operations can be done with just a single touch of either damping force adjustment buttons for front and rear (+/-) or 3 preset buttons.
Affordable Price!
Despite the use of high-performance & high-precision stepping motors, EDFC is very attractively priced. The complete kit for one car starts from JPY39,500 excl. tax (JPY41,475 incl. tax).
Functions / Features
High-Performance Stepping Motor for Damping Force Control
High-performance stepping motor is attached to the shock absorber, in place of the damping force adjustment knob. Damping force is adjusted by controlling the motor remotely from the controller unit installed inside the vehicle.
In stead of the adjusting knob... Stepping motor is attached.
Instead of the adjusting knob... Stepping motor is attached.
Remotely controlled from the controller inside cockpit!
Remotely controlled from the controller inside cockpit!

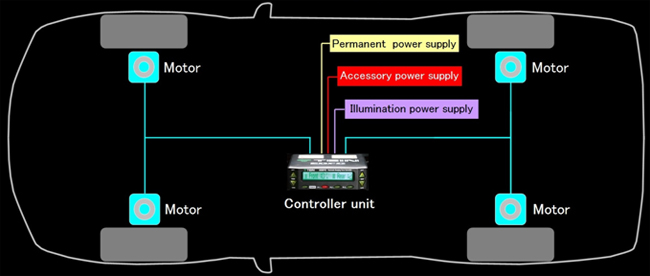

System Layout
System Layout
2 Damping Force Adjustment Modes (16 levels / 32 levels)
Damping force adjustment levels can be set in 2 different types; 16-level or 32-level. Most TEIN damping force adjustable dampers come with 16-level adjustment. Use of EDFC adds 32-level adjustment capabilities within the same range for finer adjustments.
Convenient Presets
Up to 3 damping force settings can be stored into a memory. With this feature, preferred setting can be recalled instantly with only a touch of a button, according to various driving conditions; from streets, highways to winding roads.
Resume Feature
The system remembers the damping force setting when the ignition key is turned off and automatically returns to the same setting when the key is turned back on. (Main power switch for the controller unit should stay on, for this function to work.)
Volume Adjustment
Volume of button sound can be set to level 0 (mute) and between level 1 (low) & 3 (high).
Display Dimmer Function
Brightness of the display is dimmed automatically at night in conjunction with the illumination power supply. Brightness at dimmed state can be set to 3 levels.
Self-Diagnosis & Alert
When the system detects any abnormality (wire breakage, short circuit etc), an alarm sound is emitted, all 3 memory buttons flash in red and an error message is displayed on the screen.
Lock Function
Operation of all buttons can be locked to prevent operation mistakes.

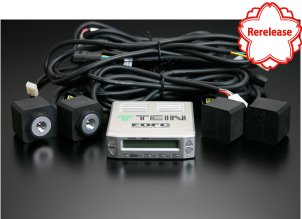

EDFC Controller Images
EDFC Controller Images
Price List
[Controller Kit / Motor Kit]
Description Part No. MSRP excl. tax
 Remarks
Controller Kit
Contoroller Kit		 EDK04-K4469 JPY 24,000
Motor Kit
 EDK05-10100
EDK05-10120
EDK05-10140
EDK05-12120
EDK05-12140
EDK05-14140		 JPY 17,500 Compatible kit varies by vehicle models and types of shock absorbers.
[Optional Parts]
Description Part No. MSRP excl. tax
 Remarks
Strut Kit
Strut Kit		 EDK06-K4474 JPY 4,000 Prevents wires from getting tangled up with motors when adjusting ride height.
Motor Extension Kit
 EDK08-P8514-10
EDK08-P8514-12
EDK08-P8514-14		 JPY 7,600 Motor Extension Kit uses the exclusively designed flexible shaft to allow EDFC Series motor to be installed at different position away from the top part of shock absorber.

Click here for details.
Piston Rod Top Extension Kit
Piston Rod Top Extension Kit		 Made-to-order JPY 7,000 This made-to-order gadget extends the piston rod top to shift the position of EDFC Series motor installation to allow sufficient space. This also works with Motor Extension Kit.

Click here for details.
EDFC Extension Cable Kit (2m)
EDFC Extension Cable Kit (2m)		 EDC02-G2238 JPY 2,000 For extending rear cable, when the included intermediate cable is not long enough, limiting the positioning of the controller.
Sold as a set of 2.
[Repair / Replacement Parts]
Description Part No. MSRP excl. tax
 Remarks
Motor
Motor		 M10: EDC01-K1466-1
M12: EDC01-K1466-2
M14: EDC01-K1466-3		 JPY 6,000 With Rubber Cover
Power Supply Cable (2m)
Power Supply Cable (2m)		 EDC01-F1320 JPY 800
Ft Cable (1m)
Fr Cable (1m)		 EDC01-F1321 JPY 700
Rr Cable (1m)
Rr Cable (1m)		 EDC01-F1322 JPY 700
Intermediate Cable FR/FL (2.5m)
 FR: EDC01-K3606
FL: EDC01-K3607		 JPY 2,000
Intermediate Cable RR/RL (4.6m)
 RR: EDC01-K3608
RL: EDC01-K3609		 JPY 2,400
8mm Spanner
 SST01-F1126 JPY 500
Hex Bolt
Hex Bolt		 SAP44-96367 JPY 200 Price shown is for a single piece.
Sold as a set of 4.
*NOT compatible with EDFC ACTIVE / EDFC ACTIVE PRO.
EDFC Series Specifications/Functions Chart
  EDFC ACTIVE PRO EDFC ACTIVE EDFC
with GPS Kit without GPS Kit with GPS Kit without GPS Kit
Basic Specifications
High-Response Wireless Control
(16.77 million channels)		 ○ ○ ○ ○ N/A
Four-Wheel Independent Adjustment ○ ○ N/A N/A N/A
Frond/Rear Separate Adjustment
(Right/Left Simultaneous)		 ○ ○ ○ ○ ○
Damping Force Level 64/32/16 64/32/16 64/32/16 64/32/16 32/16
No. of Preset Memory 10 10 10 10 3
Lateral G-Actuated Automatic Adjustment ○ ○ N/A N/A N/A
No. of Change-Point 10 x 2 patterns 10 x 2 patterns N/A N/A N/A
Program Method Relative Value Setting Relative Value Setting N/A N/A N/A
Longitudinal G-Actuated Automatic Adjustment ○ ○ ○ ○ N/A
No. of Change-Point 10 x 2 patterns 10 x 2 patterns 10 x 2 patterns 10 x 2 patterns N/A
Program Method Relative Value Setting Relative Value Setting Relative Value Setting Relative Value Setting N/A
Speed-Sensitive Automatic Adjustment ○ ○ ○ N/A N/A
No. of Change-Point 10 x 2 patterns 10 x 2 patterns 10 x 2 patterns N/A N/A
Acquisition of Speed Data Vehicle Speed Pulse
or
GPS
[Switchable]		 Vehicle Speed Pulse GPS N/A N/A
Program Method Relative Value Setting Relative Value Setting Absolute Value Setting N/A N/A
No. of Max Registerable Memory 70 70 50 30 3
2 Additional Input Ports for External Signals ○ ○ N/A N/A N/A
No. of Controllable Motor 8 8 8 8 4
Display / Button Illumination ○ ○ ○ ○ ○
Controller Size (HxWxD) 40 x 98 x 20mm 40 x 98 x 20mm 40 x 98 x 20mm 40 x 98 x 20mm 26 x 90 x 95mm
Display Size (HxW) 22 x 60mm 22 x 60mm 22 x 60mm 22 x 60mm 9 x 55mm
Setting Functions
Lock Function ○ ○ ○ ○ ○
Self-Diagnostic Function ○ ○ ○ ○ ○
Display / Button Illumination Adjustment
(Full 262K Colors)		 ○ ○ ○ ○ N/A
Display / Button Brightness Dimmer Function Off + 3 Levels Off + 3 Levels Off + 3 Levels Off + 3 Levels 3 Levels
Automatic Dimmer Function Built-In Optical Sensor
Non-Step Adjustment		 Built-In Optical Sensor
Non-Step Adjustment		 Built-In Optical Sensor
Non-Step Adjustment		 Built-In Optical Sensor
Non-Step Adjustment		 Wired to Vehicle's Illumination Signal
2-Step Adjustment
Switchable Display View Angle ○ ○ ○ ○ N/A
Buzzer Volume Adjustment Mute + 3 Levels Mute + 3 Levels Mute + 3 Levels Mute + 3 Levels Mute + 3 Levels
Frequency of Return-to-Zero Operation ○ ○ N/A N/A N/A
Starting Point for G-Actuated Adjustment ○ ○ N/A N/A N/A
Display Functions
G-Force Display
(Longitudinal & Lateral)
*with max-hold function		 Bar Display
(switchable between full scale 0.3G and 1.0G)		 ○ ○ ○ ○ N/A
Numerical Value ○ ○ ○ ○ N/A
Positional Coordinates Display
(Latitude / Longitude / Altitude)		 ○ N/A ○ N/A N/A
Tripmeter (up to 10 / in km or mile) ○ N/A ○ N/A N/A
Vehicle Speed Display
(km/h or MPH)
*with max-hold function		 ○ ○ ○ N/A N/A
Precise GPS Clock
(capable of keeping accurate time when GPS is not available)		 ○ N/A ○ N/A N/A
